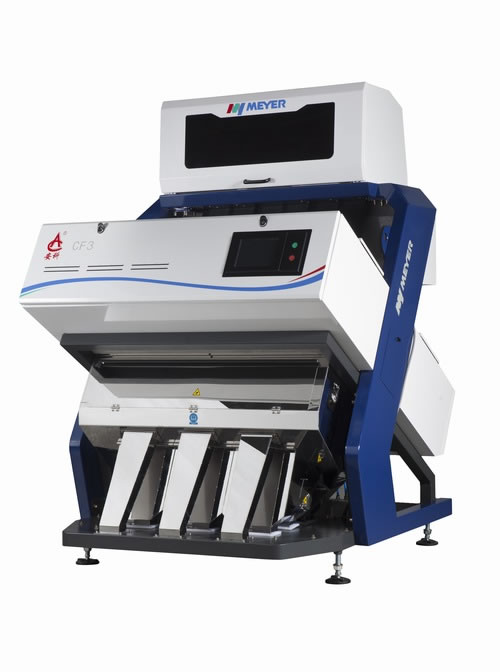

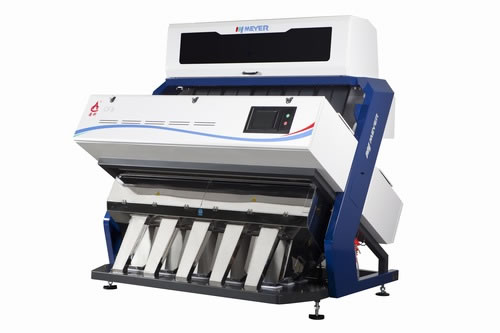

ANCOO Plastic Color Sorter CF Series

Description

With the core technology, our CF series ANCOO plastic color sorter can sort anything. CF Series plastic color sorting machine can be widely used in sorting PET bottle flakes, HDPE/LDPE bottle flakes, PE/PP bottle caps and ABS/PS/PC engineering plastic and so on.

Features

1.LED light source — high spectral purity, highly stable power supply and long service life.

2.2048 CCD sensor (world’s top) — this typed sensor can supply characteristics of high recognition, high resolution and incomparable accuracy for customer.

3.Large flat channel with high density ejector — huge quantities of materials can be processed in a short time.

4.FPGA processor — the processing speed and mass data efficiency can be improved.

5.Mode switch — a number of materials without replacing any parts can be processed in an easier way.

6.Large-scale, high-brightness and high-resolution colorful touch control screen — this advanced screen brings an easier and more convenient operation method to our customer.

7.Double air passage system — stable performance on materials with high impurity can be ensured by this system.

8. Fault self-detection function — different fault can be diagnosed by this system automatically.

Parameter

Model	Throughput (t/h)	Material Size (mm×mm)	Power (kw)	Machine Size (mm×mm×mm)	Weight (kg)
6SXZ-180F	1.0~3.0	2×2~30×30	1.8	1455×1597×2142	940
6SXZ-300F	1.5~5.0		2.4	2075×1597×2142	1330
6SXZ-420F	2.0~7.0		3.5	2625×1597×2142	1650

Note:

the throughput and parameters may be different according to the contaminant and the raw material, and there will be no prior notice if the parameters change
